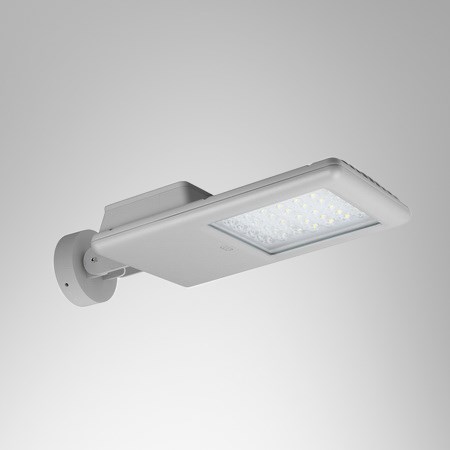

LED Wall Mount (Outdoor)
APPLICATION
โคมติดผนังภายนอกพร้อมหลอด WLL435
Wall mount WLL435 luminaire is designed to use for outdoor applications such as walkways, wall illumination,safety applications,etc.
SPECIFICATION
| IP Rating | 66 |
|---|---|
| Dimension | 250x509x130 mm. |
| Power | LED / 55W / 70W / 105W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in grey |
| Powder | coated in grey |
| Gasket | Silicone rubber |
| Mounting | Surface |
| Light Source | LED Module |
| Colour Temperature | 3000/4000/5700K |
| Luminaire Output | 55W : 6875 lm (SL8), 6600 lm (FW4) |
| 70W : 8750 lm (SL8), 8400 lm (FW4) | |
| 105W : 13125 lm (SL8), 12600 lm (FW4) | |
| Beam Angle | Street lighting distribution : SL8 |
| Forward throw distribution : FW4 | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | 55W : MH 100W |
| 70W : MH 150W | |
| 105W : MH 250W |
Dimension

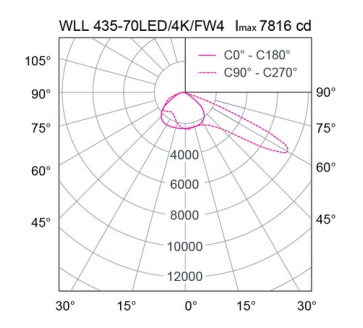

Photometric Data
