LED Wall Mount (Outdoor)
APPLICATION
โคมฝังผนังภายนอกพร้อมหลอด WLL154
Wall mount WLL154 luminaire is designed to use for outdoor applications such as walkways, wall illumination,safety applications,etc.
SPECIFICATION
| IP Rating | 65 |
|---|---|
| Dimension | 87x250x73 mm. |
| Power | LED / 9W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in black |
| Lens | Clear polycarbonate |
| Gasket | Silicone rubber |
| Cut Out | 74x240x80 mm. |
| Mounting | Recessed in block out made of polypropylene |
| Light Source | LED Module |
| Colour Temperature | 3000K |
| Luminaire Output | 220 lm |
| Beam Angle | Asymmetrical wide beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | I |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | CFL 1x18W |

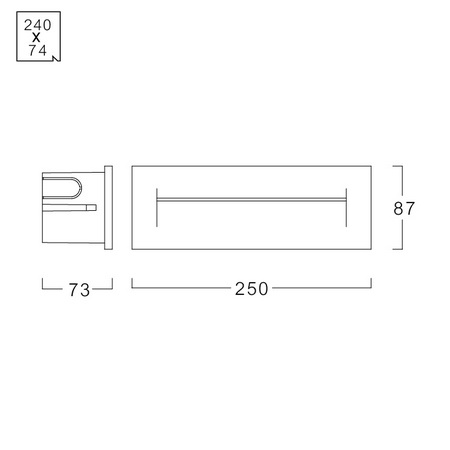

Dimension

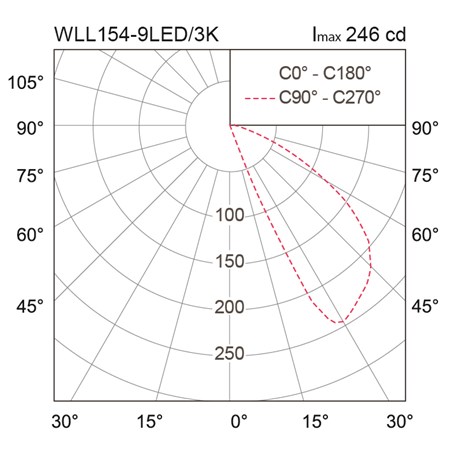

Photometric Data
