LED Wall Mount (Outdoor)
APPLICATION
โคมติดผนังภายนอกพร้อมหลอด WLL125
Wall mount WLL125 luminaire is designed to use for outdoor applications such as walkways, wall illumination,safety applications,etc.
SPECIFICATION
| IP Rating | 55 |
|---|---|
| Dimension | 138x238x101 mm |
| Power | LED / 10W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in black |
| Lens | Double layer polycarbonate (opalescent + clear) |
| Gasket | Silicone rubber |
| Mounting | Surface |
| Light Source | LED Module |
| Colour Temperature | 3000K |
| Luminaire Output | 590 lm |
| Beam Angle | Symmetrical wide beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | I |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | CFL 1x18W |

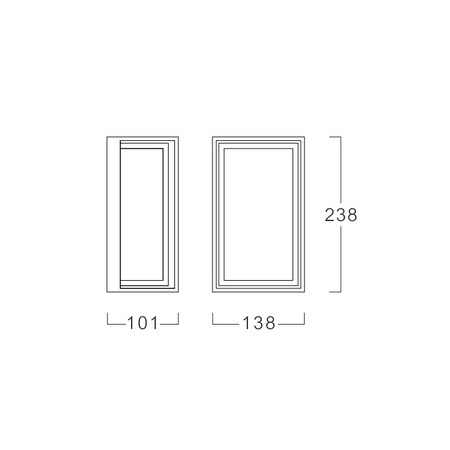

Dimension

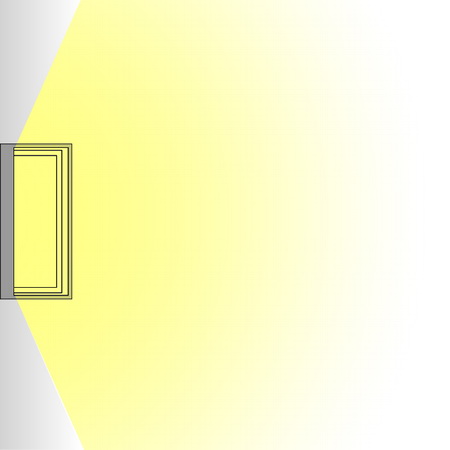

Photometric Data
