LED Batten
APPLICATION
โคมลอยพร้อมหลอด SICL
LED Batten SICL This luminaire is designed to use for convenience stores,discount stores,modern trade stores, factories.schools.storage areas,hospitals.hotels, shopping centers,corridorsjndustrial areas,car parks,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 43x1170x54 mm. |
| Power | LED / 26W |
| Housing | Extruded aluminium |
| Finishing | Anodized aluminium |
| Diffuser | Excellent transmission opal acrylic |
| Mounting | Surface or suspension |
| Light Source | LED Module |
| CRI | >80 |
| Lamp Output | 3000K/4000/6500K |
| Luminaire Output | 1L : 26W : 4085 lm / 4300 lm / 4300 lm |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 30,000hrs |

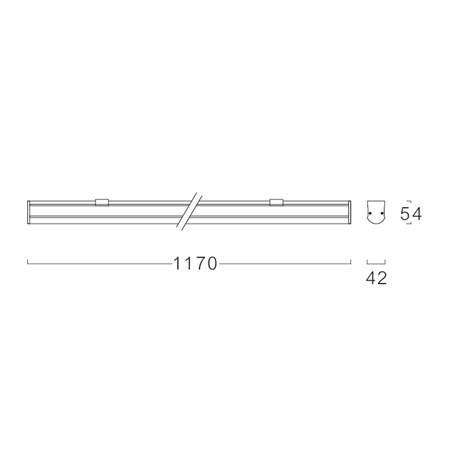

Dimension

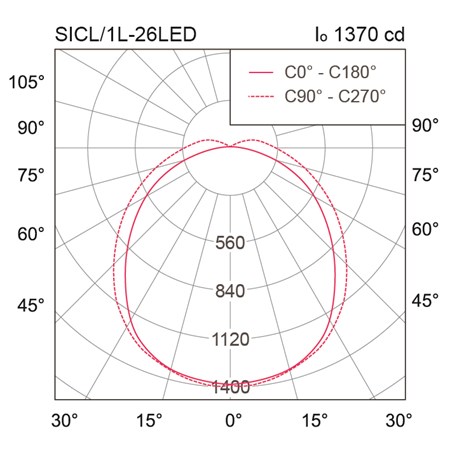

Photometric Data
