LED Surface Linear
APPLICATION
โคมลอยพร้อมหลอด LSLL105/CT
LED Surface Linear LSLL105/CT This luminaire is designed to use for office buildings.schools,storage areas,hospitals, and other working areas where is required highly uniformity illumination,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 105x635x105 mm. |
| Power | LED-T8 / 2S : 14-18W (2 lamps) / 2L : 28-32W (2 lamps) |
| Housing | Extruded aluminium |
| Finishing | Powder coated in grey, white or black |
| Louver | Matt anodized aluminum |
| Mounting | Surface |
| Light Source | LED-T8 |
| Lamp Holder | G13 |
| Colour Temperature | 3000/4000/6500K |
| Lamp Output | 2S : L&E : 2×7/8/9W : 2×1050 lm |
| 2L : L&E : 2×14/16W : 2×2100 lm | |
| Luminaire Output | 2S : 14/16/18W : 1370 lm |
| 2L : 28/32W : 2740 lm | |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | I |
| LED Lifetime | L&E : 25,000/50,000 hrs. |
| Equivalent | 14-18W : T5 2x14W/T8 2x18W |
| 28-32W : T5 2x28W/T8 2x36W |

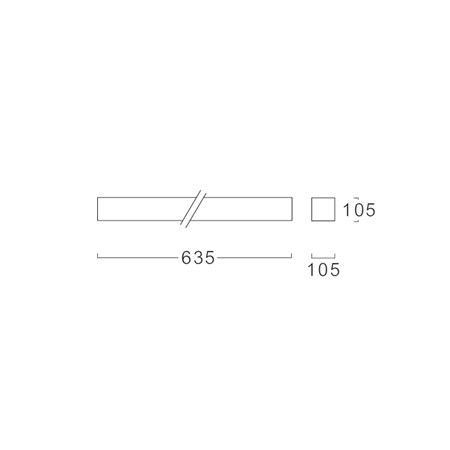

Dimension
