LED Surface Linear
APPLICATION
โคมลอยพร้อมหลอด LSLL/CT
LED Surface Linear LSLL/CT This luminaire is designed to use for office buildings.schools,storage areas,hospitals, and other working areas where is required highly uniformity illumination,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 68x635x90 mm. |
| Power | LED-T8 / 1S : 7-9W (1 lamp) 1L : 14-16W (1 lamp) |
| Housing | Extruded aluminium |
| Finishing | Powder coated in grey, white or black |
| Louver | Mirror anodized aluminum |
| Mounting | Surface |
| Light Source | LED-T8 |
| Lamp Holder | G13 |
| Colour Temperature | 3000/4000/6500K |
| Lamp Output | 1S : L&E : 7/8/9W : 1050 lm |
| 1L : L&E : 14/16W : 2100 lm | |
| Luminaire Output | 1S : 7/8/9W : 720 lm |
| 1L : 14/16W : 1445 lm | |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | I |
| LED Lifetime | L&E : 25,000/50,000 hrs. |
| Equivalent | 7-9W : T5 1x14W/T8 1x18W |
| 14-16W : T5 1x28W/T8 1x36W |

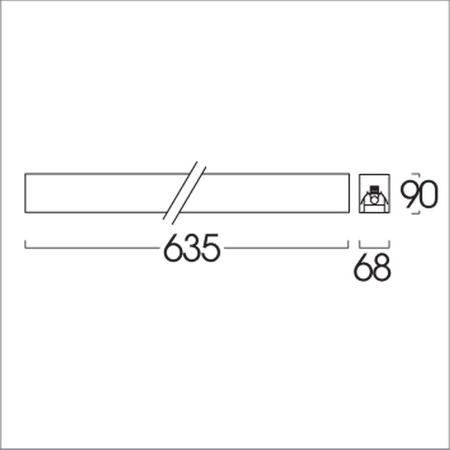

Dimension
