LED Linear High Bay
APPLICATION
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 200x1223x80 mm. |
| Power | LED-T8 / 23W / 46W / 69W / 92W |
| Housing | Die-formed cold roll steel |
| Description | Reflector type |
| MI : Mirror anodized aluminium | |
| SMI : Super mirror anodized aluminium | |
| WR : White finish | |
| Finishing | Powder coated in white |
| Mounting | Surface |
| Power | 1L : 23W (1 lamp) |
| 2L : 46W (2 lamps) | |
| 3L : 69W (3 lamps) | |
| 4L : 92W (4 lamps) | |
| Light Source | LED-T8 |
| Lamp Holder | G13 |
| Colour Temperature | 3000/4000/6500K |
| Lamp Output | 1L: L&E : 1x23W : 1×3700 lm |
| 2L: L&E : 2x23W : 2×3700 lm | |
| 3L: L&E : 3x23W : 3×3700 lm | |
| 4L: L&E : 4x23W : 4×3700 lm | |
| Luminaire Output | 1L: L&E : 23W : 3332 lm |
| 2L: L&E : 46W : 6664 lm | |
| 3L: L&E : 69W : 9996 lm | |
| 4L: L&E : 92W : 13328 lm | |
| Power Supply | 220-240VAC, 50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| LED Lifetime | L&E : 50,000 hrs. |
| Equivalent | 23W : T5 1x54W |
| 46W : T5 2x54W | |
| 69W : T5 3x54W | |
| 92W : T5 4x54W |

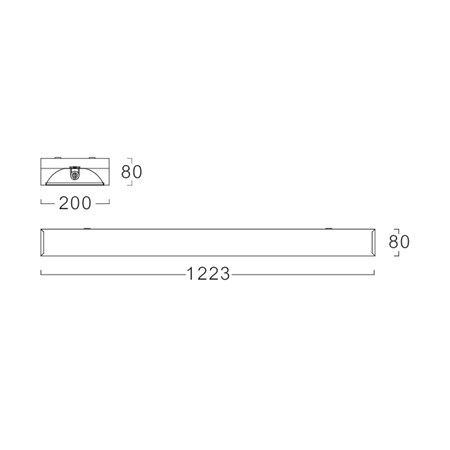

Dimension
