LED Batten
APPLICATION
โคมลอยพร้อมหลอด LSB/CT
LED Batten LSB/CT This luminaire is designed to use for convenience stores,discount stores,modern trade stores, factories.schools.storage areas,hospitals.hotels, shopping centers,corridorsjndustrial areas,car parks,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 37x1224x55 mm. |
| Power | LED-T8 / 1S:8-9W (1 lamp) 1L:14-18W (1 lamp) |
| Housing | Die-formed cold roll steel |
| Finishing | Powder coated in white |
| Mounting | Surface or Suspended |
| Light Source | LED-T8 |
| Lamp Holder | G13 |
| Colour Temperature | 3000/4000/6500K |
| Lamp Output | 1S:L&E : 8/9W:1050 lm |
| 1L:L&E : 14/16/18W:2100 lm | |
| Luminaire Output | 1S : 8/9W : 1035 lm |
| 1L : 14/16/18W : 2068 lm | |
| Power Supply | 220VAC 50Hz |
| Insulation Class | I |
| LED Lifetime | L&E:25,000/50,000 hrs. |
| Equivalent | 8-9W:T5 1x14W/T8 1x18W |
| 14-18W:T5 1x28W/T8 1x36W |

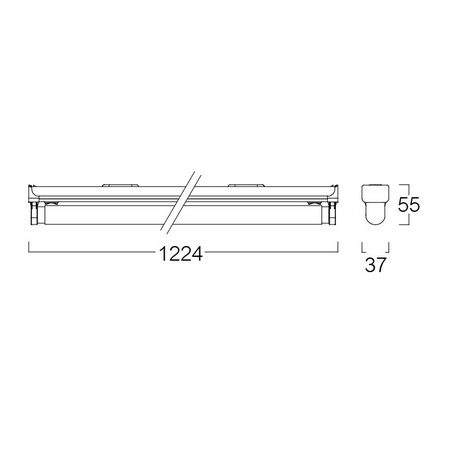

Dimension

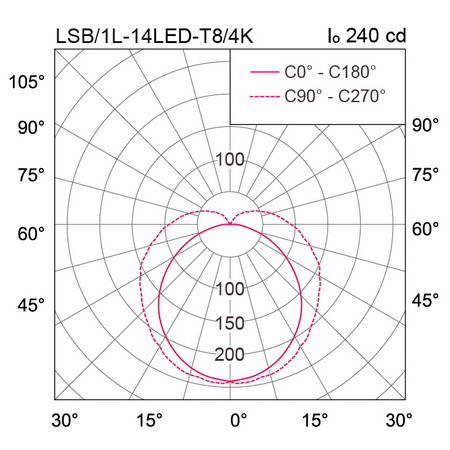

Photometric Data
