LED Batten
APPLICATION
โคมลอยพร้อมหลอด LBSL
LED Batten LBSL This luminaire is designed to use for convenience stores,discount stores,modern trade stores, factories.schools.storage areas,hospitals.hotels, shopping centers,corridorsjndustrial areas,car parks,etc.
SPECIFICATION
| IP Rating | 40 |
|---|---|
| Dimension | 50x578x60 mm. |
| Power | LED / 1S : 11/16W / 1L : 22/32W |
| Housing | Extruded aluminium |
| Finishing | Powder coated in white |
| Diffuser | Excellent transmission opal acrylic |
| Mounting | Surface or Suspension |
| Light Source | LED Module |
| Colour Temperature | 3000/4000/6500K |
| Luminaire Output | 1S : 11W : 1430 lm |
| 1S : 16W : 2130 lm | |
| 1L : 22W : 2860 lm | |
| 1L : 32W : 4260 lm | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | 16W : T5 2x14W/T8 2x18W |
| 32W : T5 2x28W/T8 2x36W |

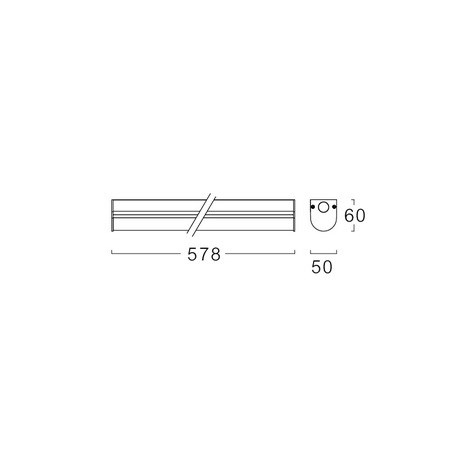

Dimension
