LED Surface Square/Multi Downlight
APPLICATION
ชุดโคมลอยดาวน์ไลท์ SSDL91
Surface downlight SSDL91 is designed to use for office buildings, shopping centers, convenience stores, modern trade stores, discount stores,hotels resturants,residences,recreational centers,
museums,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 90x90x90 mm. |
| Power | LED / 10W |
| Housing | Die-formed aluminium |
| Finishing | Powder coated in white or black |
| Mounting | Surface |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 10W : 1120/1215/1290 lm |
| Luminaire Output | 10W : 926/1000/1083 lm |
| Beam Angle | 55 degree |
| UGR | <19 |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | l |
| Luminaire Lifetime | 40,000 hrs. |
| Equivalent | 10W : PAR30 50W |

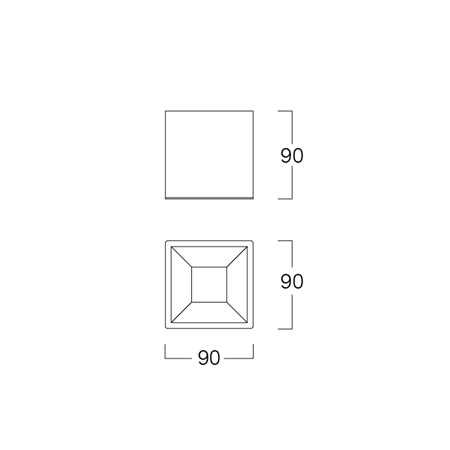

Dimension

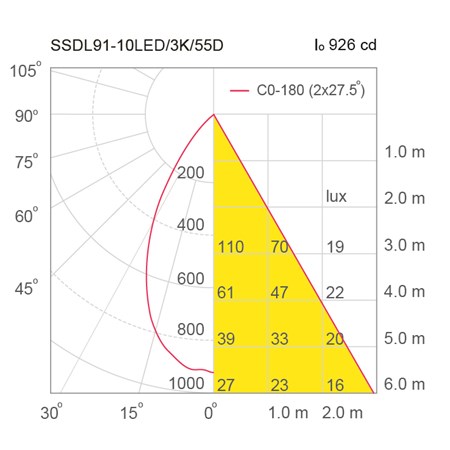

Photometric Data
