LED IP Surface Downlight
APPLICATION
ชุดโคมลอยดาวน์ไลท์ ISSL1010
Surface downlight ISSL1010 is designed to use for office buildings, shopping centers, convenience stores, modern trade stores, discount stores,hotels resturants,residences,recreational centers,
museums,etc.
SPECIFICATION
| IP Rating | 65 |
|---|---|
| Dimension | – |
| Power | LED / 10W |
| Housing | Die-cast and extruded aluminium |
| Finishing | Powder coated in black |
| Mounting | Ceiling |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 1120/1215/1290 lm |
| Luminaire Output | 662/715/761 lm * |
| Beam Angle | 15/24/36/50 Degree |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| LED Lifetime | 40,000 hrs. |
| Equivalent | 10W : PAR30 35W |
| Remarks | Install on ceiling only * Value at 24 degree |

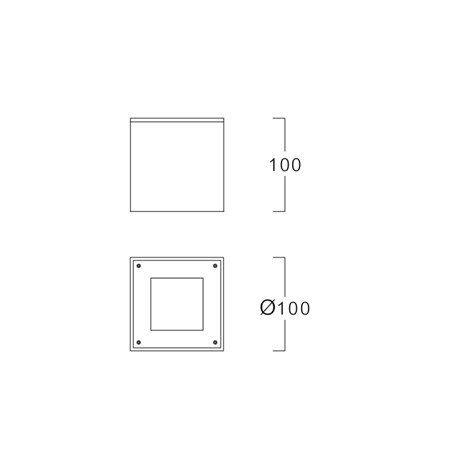

Dimension
