LED IP Surface Downlight
APPLICATION
ชุดโคมลอยดาวน์ไลท์ ISDP145
Surface downlight ISDP145 is designed to use for office buildings, shopping centers, convenience stores, modern trade stores, discount stores,hotels resturants,residences,recreational centers,
museums,etc.
SPECIFICATION
| IP Rating | 55 |
|---|---|
| Dimension | 145x145x250 mm. |
| Power | LED-PAR30 / 7-10W |
| Housing | Die-cast and extruded aluminium |
| Finishing | Powder coated in white or black |
| Diffuser | Clear tempered glass |
| Mounting | Ceiling |
| Light Source | LED-PAR30 |
| LED-BULB | |
| Lamp Holder | E27 |
| Colour Temperature | 2700 – 6500K |
| Lamp Output | 10W : 3000K : 1000 lm : LED-PAR30 |
| 9.5W : 3000/6500K : 800 lm : LED-BULB | |
| Power Supply | 220VAC 50Hz |
| Power Factor | > 0.9 |
| Insulation Class | I |
| LED Lifetime | 20,000-45,000 hrs. |
| Equivalent | PAR30 75W |
| Remarks | Install on ceiling only |

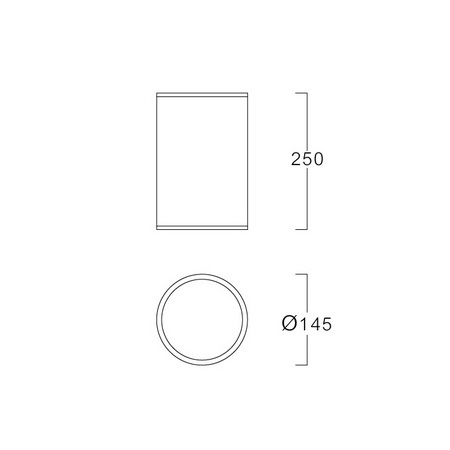

Dimension
