LED Wall Mount (Outdoor)
APPLICATION
โคมฝังผนังภายนอกพร้อมหลอด STLL101
Wall mount STLL101 luminaire is designed to use for outdoor applications such as walkways, wall illumination,safety applications,etc
SPECIFICATION
| IP Rating | 65 |
|---|---|
| Dimension | 82x82x74 mm. |
| Power | LED / 1W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in white |
| Lens | Prismatic polycarbonate |
| Gasket | Silicone rubber |
| Cut Out | 77x77x80 mm. |
| Mounting | Recessed in block out made of polypropylene |
| Light Source | LED Module |
| Colour Temperature | 3000/5700K |
| Luminaire Output | 75/85 lm |
| Beam Angle | Symmetrical wide beam |
| Control Gear | Separate magnetic transformer |
| Power Supply | 220VAC,50Hz |
| Insulation Class | I |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | JC 10W |

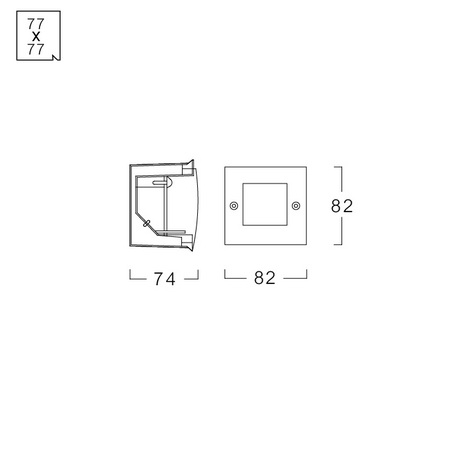

Dimension

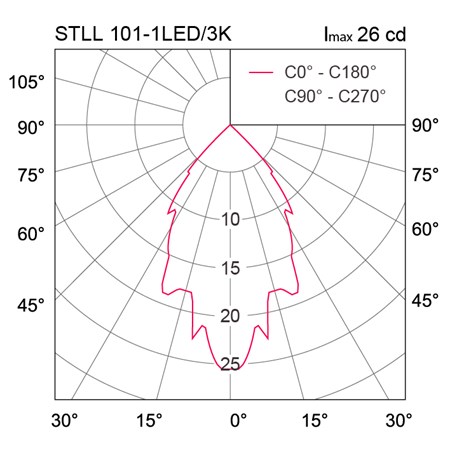

Photometric Data
