SPOTLIGHT & TRACK LIGHT LED MODULE
APPLICATION
โคมไฟ Track light TRL801 is designed to use for office buildings,shopping centers,convenience stores,modern trade stores,discount stores,hotels,resturants,residences, museums,recreational centers,etc
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED / 23W / 30W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in white or black |
| Mounting | 1 circuit lighting track (LTS01/LTR01) |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 23W : 2635/2845/3090 lm |
| . | 30W : 3500/3770/4015 lm |
| Luminaire Output | 23W : 2199/2375/2573 lm * |
| . | 30W : 2985/3224/3433 lm * |
| Beam Angle | 15/24/36/50 Degree |
| Control Gear | Built-in drive |
| Power Supply | 220VAC 50Hz |
| Power Factor | > 0.9 |
| Insulation Class | II |
| LED Lifetime | 40,000 hrs. |
| Equivalent | 23W : MH 35W |
| . | 30W : MH 70W |
| Remarks | * Value at 24 Degree |

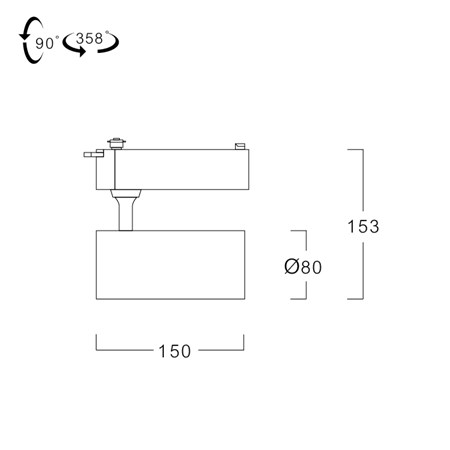

Dimension

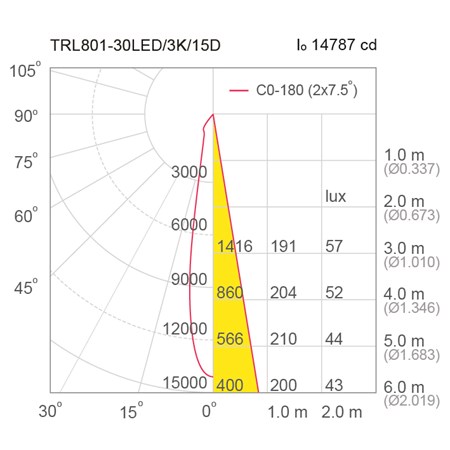

Photometric Data
