SPOTLIGHT & TRACK LIGHT LED MODULE
APPLICATION
โคมไฟ LED Spot / Tracklight TRL50 is designed to use for office buildings,shopping centers,convenience stores,modern trade stores,discount stores,hotels,resturants,residences, museums,recreational centers,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED / 8W |
| Housing | Die-cast and extruded aluminium |
| Finishing | Powder coated in white or black |
| Mounting | 1 circuit lighting track (LTS01/LTR01) |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 8W : 960/1032/1224 lm |
| Luminaire Output | 8W : 654/706/840 lm |
| Beam Angle | 15/38/55 Degree |
| Control Gear | Built-in driver |
| Power Supply | 220VAC 50Hz |
| Power Factor | > 0.9 |
| Insulation Class | II |
| LED Lifetime | 40,000 hrs |
| Equivalent | 8W : PAR30 50W |
| Remarks | * Value at 15 Degree |

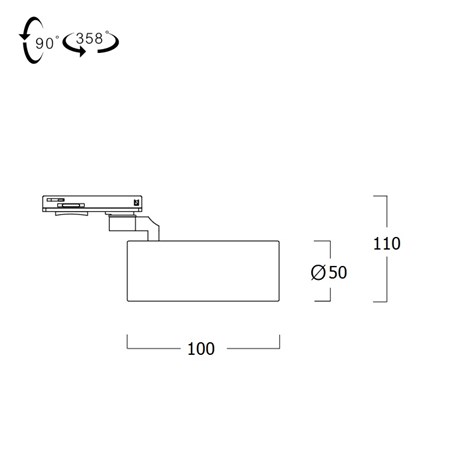

Dimension

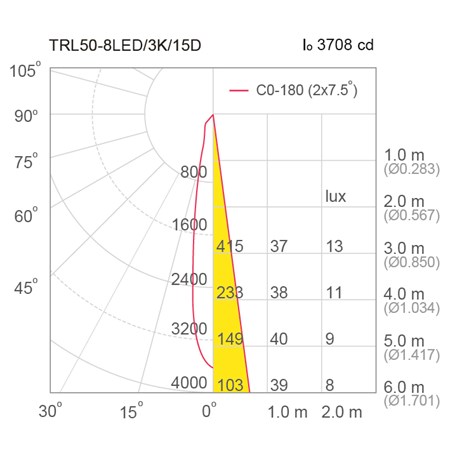

Photometric Data
