SPOTLIGHT & TRACK LIGHT LED MODULE
APPLICATION
โคมไฟ Track light TRL135 is designed to use for office buildings,shopping centers,convenience stores,modern trade stores,discount stores,hotels,resturants,residences,
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED / 23W / 30W |
| Housing | Die-cast aluminium |
| Finishing | Powder Coated in white or black |
| Mounting | 1 curcuit lighting track (LTS01/LTR01) |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 23W:2570/2786/3045 lm |
| . | 30W:3427/3715/4060 lm |
| Luminaire Output | 23W:2148/2300/2473 lm * |
| . | 30W:2860/3070/3300 lm * |
| Beam Angle | 14/24/36/45/60 degree |
| Control Gear | Built-in driver |
| Power Supply | 220VAC 50Hz |
| Power Factor | >0.90 |
| Insulation Class | II |
| Luminaire Lifetime | 40,000 hrs. |
| Equivalent | 23W:MH 35W |
| . | 30W:MH 70W |
| Remarks | * Value at 24 Degree |

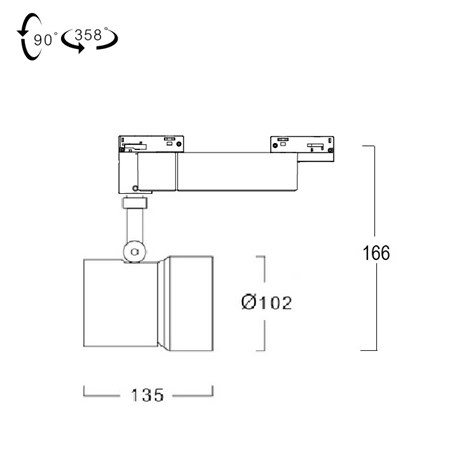

Dimension
Photometric Data
