RECESSED DOWNLIGHT : LED RETROFIT
APPLICATION
โคมไฟดาวไลท์แบบฝัง RSFM83
Recessed downlight RFM83 is designed to use for office buildings,shopping centers,convenience stores, modern trade stores,discount stores,hotels, resturants,residences,recreation centers
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED-MR16 / 1×4-8W (1 lamp) 2×4-8W (2 lamps) |
| Housing | Die-cast aluminium |
| Description | 4 different color matching are available for various applications |
| ⠀⠀⠀⠀ | WH : lamp head white , trim white |
| ⠀⠀⠀⠀ | BK : lamp head black , trim black |
| WH/BK : lamp head white , trim black | |
| BK/WH : lamp head black , trim white | |
| Finishing | Powder Coated in white/black |
| Mounting | Recessed |
| Light Source | LED-MR16 |
| Lamp Holder | GX5.3 |
| Colour Temperature | 2700-6500K |
| Lamp Output | 6W : 2700/3000/4000/6500K : 550 lm |
| 7W : 2700K : 550 lm | |
| 7W : 3000K : 600 lm | |
| Control Gear | Separate magnetic or electronic transformer |
| Power Supply | 220VAC 50Hz |
| Power Factor | > 0.9 |
| Insulation Class | II |
| LED Lifetime | 6W : 15,000 hrs. |
| 7W : 25,000 hrs. | |
| Equivalent | MR16 35 – 50W |

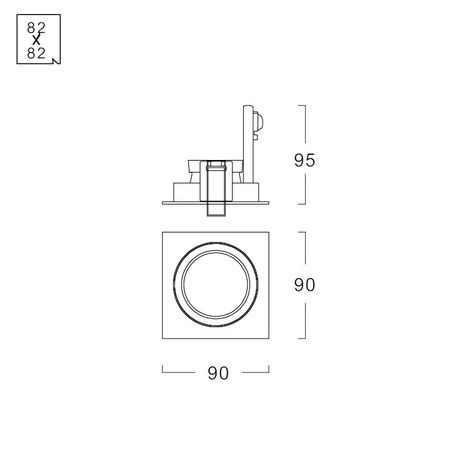

Dimension

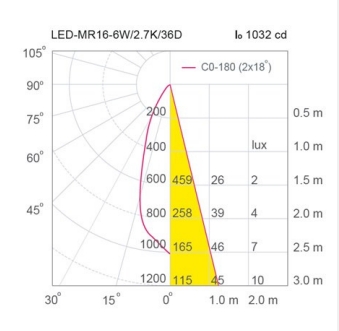

Photometric Data
