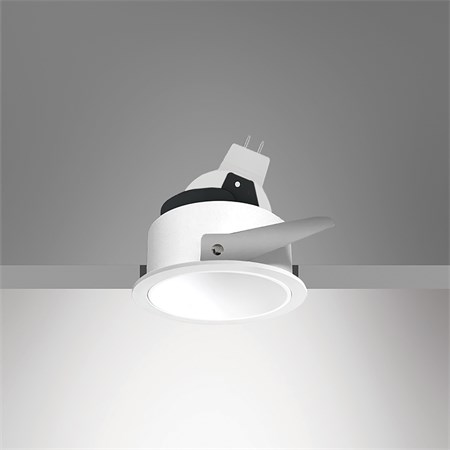

RECESSED DOWNLIGHT : LED RETROFIT
APPLICATION
โคมไฟดาวไลท์แบบฝังRAM76J
Recessed downlight RAM76J is designed to use for office buildings,shopping centers,convenience stores, modern trade stores,discount stores,hotels, resturants,residences,recreation centers
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED-MR16 / 4-8W |
| Housing | Die-cast aluminium |
| Description | 5 different lamp heads are available for various applications |
| WR (front reflector white) | |
| BR (front reflector black) | |
| MB (front reflector mirror black) | |
| MI (front reflector mirror chrome) | |
| WW (front reflector wall wash) | |
| Finishing | Powder coated in white |
| Mounting | Recessed |
| Light Source | LED-MR16 |
| Lamp Holder | GX5.3 |
| Colour Temperature | 2700-6500K |
| CRI | 80 |
| Lamp Output | 6W : 2700/3000/4000/6500K : 550 lm |
| 7W : 2700K : 550 lm | |
| 7W : 3000K : 600 lm | |
| Control Gear | Separate magnetic or electronic transformer |
| Power Supply | 220VAC,50Hz ( Magnetic transformer ) |
| 220-240VAC,50Hz ( Electronic transformer is available as option ) | |
| Power Factor | >0.9 |
| Insulation Class | II |
| Luminaire Lifetime | 6W : 15,000 hrs. |
| 7W : 25,000 hrs | |
| Equivalent | MR16 35 – 50W |

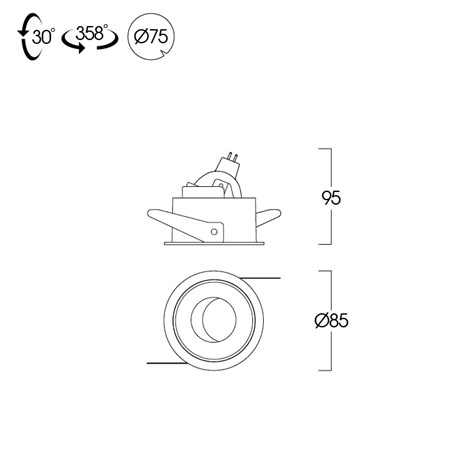

Dimension

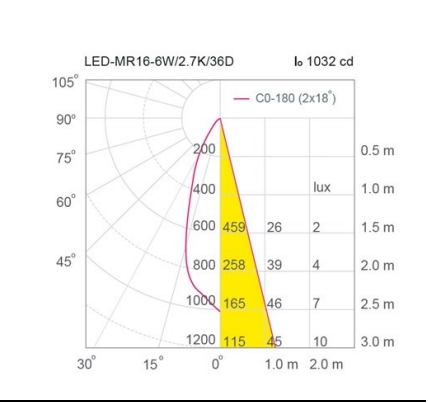

Photometric Data
