RECESSED DOWNLIGHT : LED MODULE
APPLICATION
ชุดโคมฝังดาวน์ไลท์พร้อมหลอด RAL86J
Recessed downlight RAL86J is designed to use for office buildings,shopping centers,convenience stores, modern trade stores,discount stores,hotels, resturants,residences,recreation centers, museums,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | 92x92x94 mm. |
| Power | LED / 14W / 18W |
| Housing | Die-cast aluminium |
| Description | Primary reflector : Vacuum aluminum plating PC/ High quality lens |
| 4 different secondary reflectors are available for various applications | |
| WR (front reflector white) | |
| BR (front reflector black) | |
| MB (front reflector mirror black) | |
| MI (front reflector mirror chrome) | |
| Finishing | Powder coated in white |
| Mounting | Recessed |
| Light Source | LED COB |
| Colour Temperature | 3000K/4000K/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 14W : 1540/1660/1805 lm |
| 18W : 1980/2134/2320 lm | |
| Luminaire Output | 14W : 1460/1562/1671 lm * |
| 18W : 1808/1934/2069 lm * | |
| Beam Angle | 15/18/26/38/55 Degree |
| UGR | <19 |
| Control Gear | Separate Driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 40,000 hrs |
| Remarks | * Value at 38 Degree |

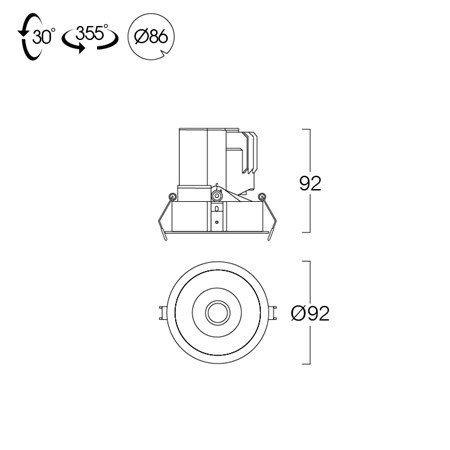

Dimension

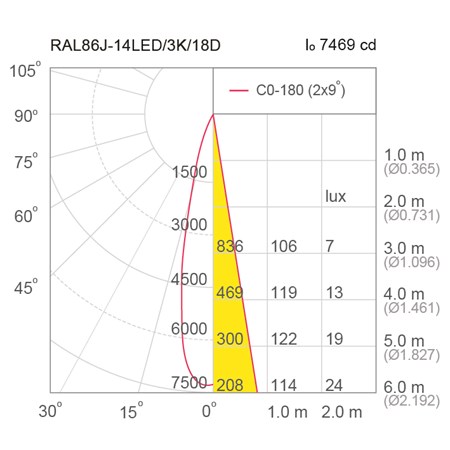

Photometric Data
