RECESSED DOWNLIGHT : LED MODULE
APPLICATION
ชุดโคมฝังดาวน์ไลท์พร้มหลอด RAL56J
Recessed downlight RAL56J is designed to use for office buildings,shopping centers,convenience stores, modern trade stores,discount stores,hotels, resturants,residences,recreation centers, museums,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | – |
| Power | LED / 8W |
| Housing | Die-cast aluminium |
| Description | Primary reflector : High quality lens 4 different secondary reflectors are available for various applications |
| WR (front reflector white) | |
| BR (front reflector black) | |
| MB (front reflector mirror black) | |
| MI (front reflector mirror chrome) | |
| Finishing | Powder coated in white |
| Mounting | Recessed |
| Light Source | LED COB |
| Colour Temperature | 3000K/4000K |
| CRI | >90 |
| Lamp Output | 797/849 lm |
| Luminaire Output | 604/640 lm * |
| Beam Angle | 20/30/40/50 Degree |
| UGR | <19 |
| Control Gear | Separate Driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.90 |
| Luminaire Lifetime | 40,000 hrs |
| Remarks | * Value at 50 Degree |
| ** Tunable white 2.7-6K available as option |

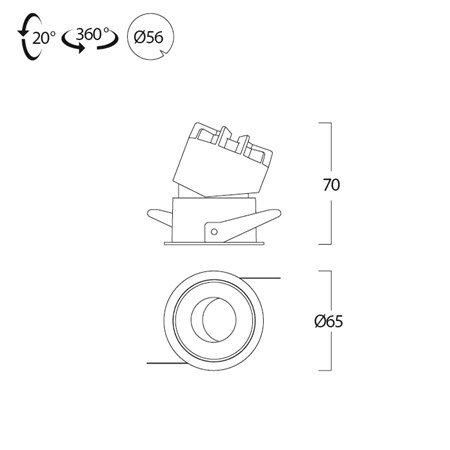

Dimension

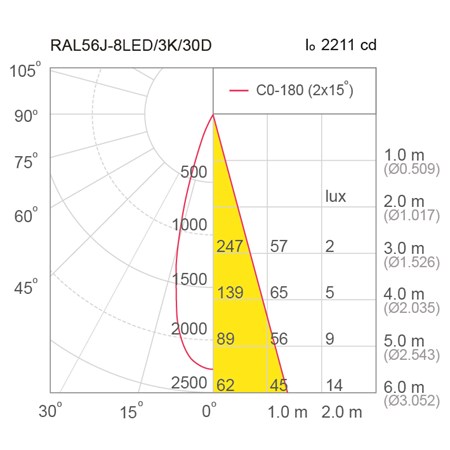

Photometric Data
