LED Canopy / Tunnel
APPLICATION
โคมฝังเพดานภายนอกพร้อมหลอด RCL436
Canopy RCL436 is designed to illuminate tunnels, underpasses,warehouses,garages,indoor gymnasiums,recreational and competition sport fields,etc.
SPECIFICATION
| IP Rating | 66 |
|---|---|
| Dimension | 380x582x147 mm |
| Power | LED / 195W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in white |
| Lens | Acrylic (PMMA) |
| Gasket | Silicone rubber |
| Cut Out | 360×562 mm. |
| Mounting | Recessed |
| Light Source | LED Module |
| Colour Temperature | 3000/4000/5700K |
| Luminaire Output | 26325 lm |
| Beam Angle | Symmetrical distribution : 90/110 degree |
| Asymmetrical distribution : FW5 | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | MH 400W |

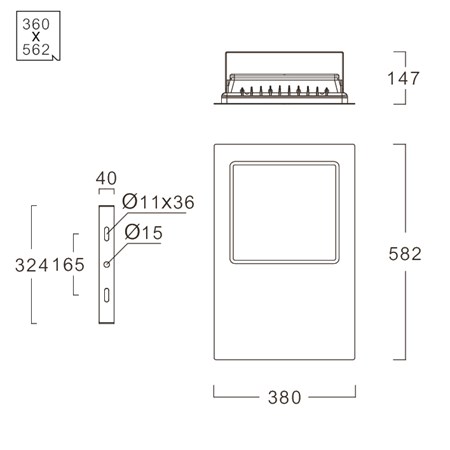

Dimension

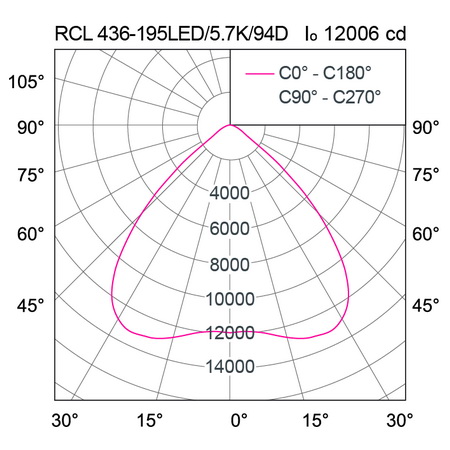

Photometric Data
