LED Recessed Downlight
APPLICATION
CASAMBI – RAL135J
Recessed downlight is designed to use for office buildings,shopping centers,convenience stores,modern trade stores,discount stores,hotels,resturants,residences,recreation centers,
museums,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | |
| Power | 18W / 23W / 30W / 35W / 40W |
| Housing | Die-cast Aluminum |
| Description | Primary reflector : Vacuum aluminum plating PC. 4 different secondary reflectors are available for various applications |
| MI (front reflector mirror chrome) | |
| WR (front reflector white) | |
| BR (front reflector black) | |
| MB (front reflector mirror black) | |
| Finishing | Powder coated in white |
| Mounting | Recessed |
| Light Source | LED COB |
| Colour Temperature | 3000K/4000K/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 18W : 2062/2226/2418 lm |
| 23W : 2635/2845/3090 lm | |
| 30W : 3500/3770/4015 lm | |
| 35W : 3940/4245/4520 lm | |
| 40W : 4502/4581/5165 lm | |
| Luminaire Output | 18W : 1504/1609/1721 lm * |
| 23W : 2014/2154/2305 lm ** | |
| 30W : 2745/2937/3142 lm ** | |
| 35W : 3055/3268/3497 lm ** | |
| 40W : 3342/3575/3826 lm ** | |
| Beam Angle | 18W : 10 Degree |
| 23/30/35/40W : 18/26/38/50/65 Degree | |
| UGR | <19 |
| Control Gear | Separate Driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 40,000 hrs |
| Remarks | * Value at 10 Degree |
| ** Value at 38 Degree |

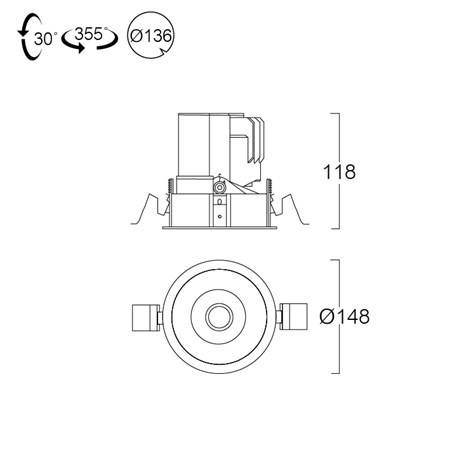

Dimension

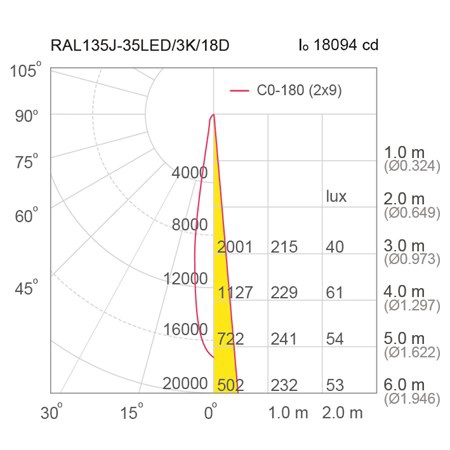

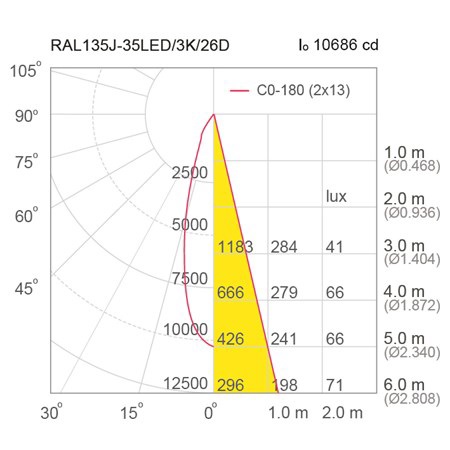

Photometric Data
