LED Recessed Downlight
APPLICATION
CASAMBI – RAL102J
Recessed downlight is designed to use for office buildings,shopping centers,convenience stores,modern trade stores,discount stores,hotels,resturants,residences,recreation centers,museums,etc.
SPECIFICATION
| IP Rating | 20 |
|---|---|
| Dimension | |
| Power | 14W / 20W / 23W / 27W |
| Housing | Die-cast Aluminum |
| Description | Primary reflector : Vacuum aluminum plating PC/ High quality lens 4 different secondary reflectors are available for various applications |
| WR (front reflector white) | |
| BR (front reflector black) | |
| MB (front reflector mirror black) | |
| MI (front reflector mirror chrome) | |
| Finishing | Powder coated in white |
| Mounting | Recessed |
| Light Source | LED COB |
| Colour Temperature | 3000K/4000K/5000K |
| CRI | >90/ >90/ >80 |
| Lamp Output | 14W : 1540/1660/1805 lm |
| 20W : 2200/2370/2575lm | |
| 23W : 2635/2845/3090 lm | |
| 27W : 3093/3340/3627 lm | |
| Luminaire Output | 14W : 1024/1095/1172 lm * |
| 20W : 1907/2040/2183 lm ** | |
| 23W : 2433/2603/2785 lm ** | |
| 27W : 2797/2992/3202 lm ** | |
| Beam Angle | 14W : 10/15/26/36/45/55 Degree |
| 20/23/27W : 26/36/45/55 Degree | |
| UGR | <19 |
| Control Gear | Separate Driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 40,000 hrs |
| Remarks | * Value at 15 Degree |
| ** Value at 36 Degree |

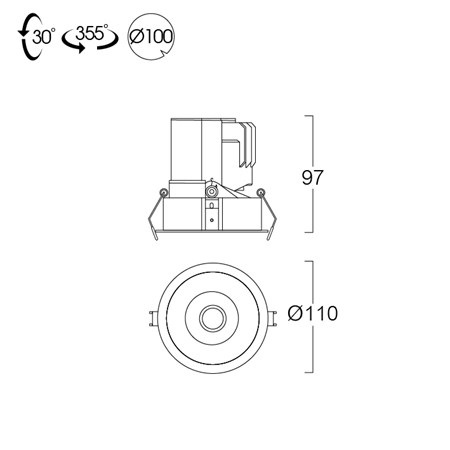

Dimension

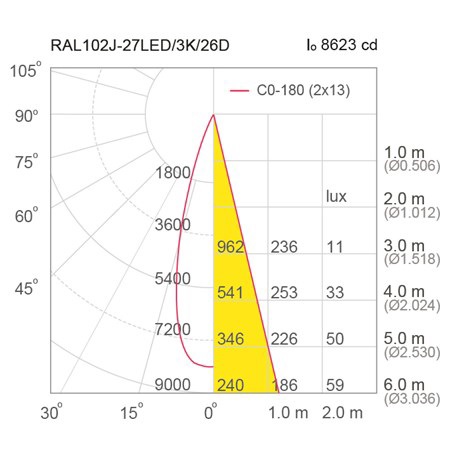

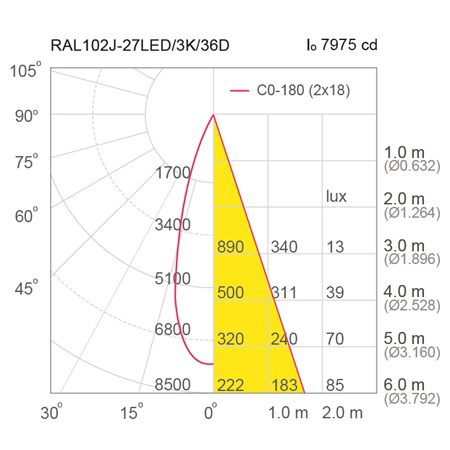

Photometric Data
