LED Bollard
APPLICATION
โคมตั้งพื้นภายนอกพร้อมหลอด BLL404
Bollard BLL404 luminaire is designed to illuminate walkways, steps,low planted areas,pedestrian areas,etc.
SPECIFICATION
| IP Rating | 65 |
|---|---|
| Dimension | |
| Power | LED / 15W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in black |
| Reflector | White polycarbonate |
| Lens | Clear acrylic |
| Gasket | Silicone rubber |
| Dimension | BLL404-0.6M : 150x150x600 mm. |
| BLL404-0.8M : 150x150x800 mm. | |
| Mounting | Surface |
| Light Source | LED Module |
| Colour Temperature | 3000/4000K |
| Luminaire Output | 880 lm |
| Beam Angle | Symmetrical wide beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | l |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | CFL 2x18W |

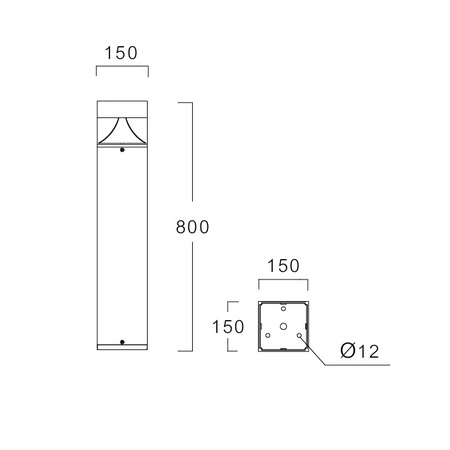

Dimension

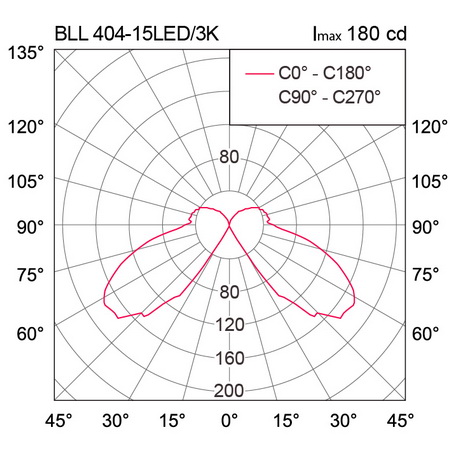

Photometric Data
