LED Bollard
APPLICATION
โคมตั้งพื้นภายนอกพร้อมหลอด BLL224
Bollard BLL224 luminaire is designed to illuminate walkways, steps,low planted areas,pedestrian areas,etc.
SPECIFICATION
| IP Rating | 55 |
|---|---|
| Dimension | Dia.180×210 mm. |
| Power | LED / 10W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in black |
| Reflector | Anodized aluminium |
| Lens | Clear polycarbonate |
| Gasket | Silicone rubber |
| Mounting | Surface |
| Light Source | LED-COB |
| Colour Temperature | 3000K |
| Luminaire Output | 360 lm |
| Beam Angle | Symmetrical wide beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | l |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | CFL 1x18W |

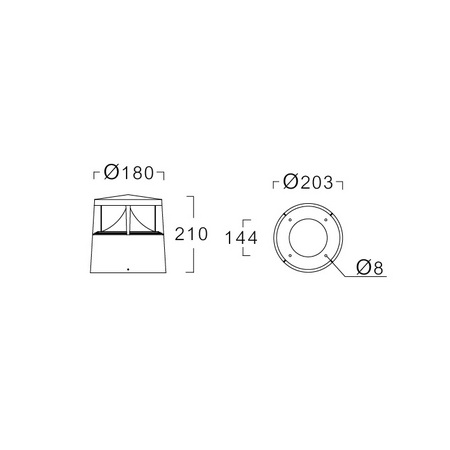

Dimension

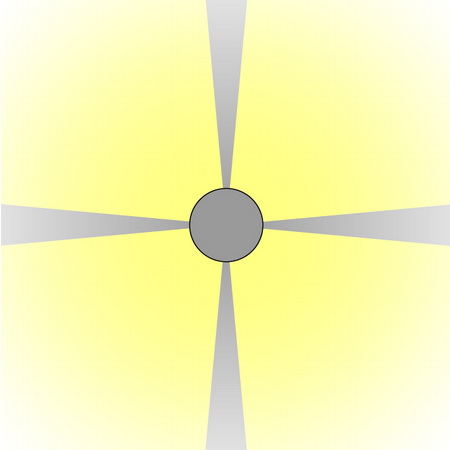

Photometric Data
