LED Bollard
APPLICATION
โคมตั้งพื้นภายนอกพร้อมหลอด BLL110
Bollard BLL110 luminaire is designed to illuminate walkways, steps,low planted areas,pedestrian areas,etc.
SPECIFICATION
| IP Rating | 55 |
|---|---|
| Dimension | Dia.90×648 mm. |
| Power | LED / 6W |
| Housing | Die-cast aluminium |
| Finishing | Powder coated in black |
| Lens | Opalescent polycarbonate |
| Gasket | Silicone rubber |
| Mounting | Surface |
| Light Source | LED-COB |
| Colour Temperature | 3000K |
| Luminaire Output | 140 lm |
| Beam Angle | Symmetrical medium beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | l |
| Luminaire Lifetime | 30,000 hrs. |
| Equivalent | JC 20W |

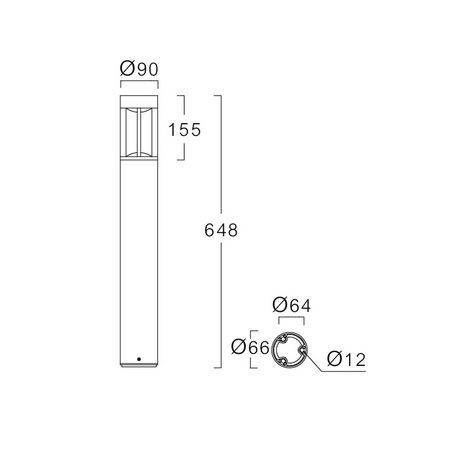

Dimension

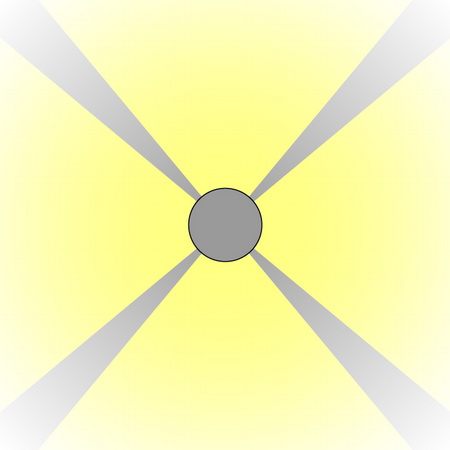

Photometric Data
