LED Arealight
APPLICATION
โคมบริเวณพร้อมหลอด ARL510
Area light ARL510 luminaire is designed to illuminate shopping yards,parking lots,recreational and competition sport fields,pathways and other applications where glare limitation is required
SPECIFICATION
| IP Rating | 66 |
|---|---|
| Dimension | 250x630x205 mm. |
| Power | LED / 35W / 55W / 70W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in black |
| Lens | Acrylic (PMMA) |
| Gasket | Silicone rubber |
| Mounting | Straight entry pole with OD 60×100 mm. spigot |
| Light Source | LED Module |
| Colour Temperature | 3000/4000/5700K |
| Luminaire Output | 35W : 4725 lm (SL9), 4900 lm (FW5) |
| 55W : 7425 lm (SL9), 7700 lm (FW5) | |
| 70W : 9450 lm (SL9), 9800 lm (FW5) | |
| Beam Angle | Street lighting distribution : SL9 |
| Forward throw distribution : FW5 | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | 35W : MH 70W |
| 55W : MH 100W | |
| 70W : MH 150W |

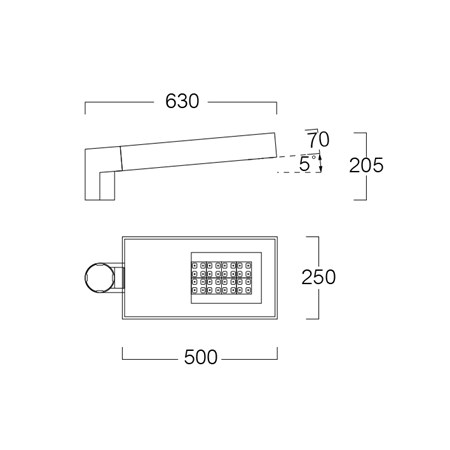

Dimension
