LED Post Top
APPLICATION
โคมไฟสนาม PTL120
Post-top PTL120 luminaire is designed to use for public or private areas such as hotels, houses,gardens,parks,walkways,etc.
SPECIFICATION
| IP Rating | 55 |
|---|---|
| Dimension | |
| Power | LED / 35W |
| Housing | Die-cast aluminium with zinc coated steel pole |
| Finishing | Powder coated in black |
| Lens | Frost glass |
| Gasket | Silicone rubber |
| Dimension | Luminaire : Dia.440×730 mm. |
| Pole : Dia.114/76 mm., H2500-4000 mm. | |
| Mounting | Surface |
| Light Source | LED Module |
| Colour Temperature | 3000K |
| Luminaire Output | 3500 lm |
| Beam Angle | Symmetrical medium beam |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | MH 70W |

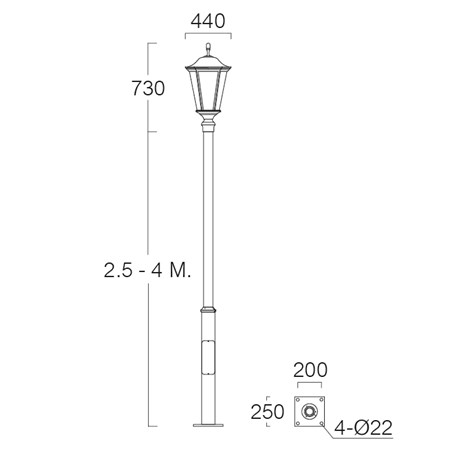

Dimension

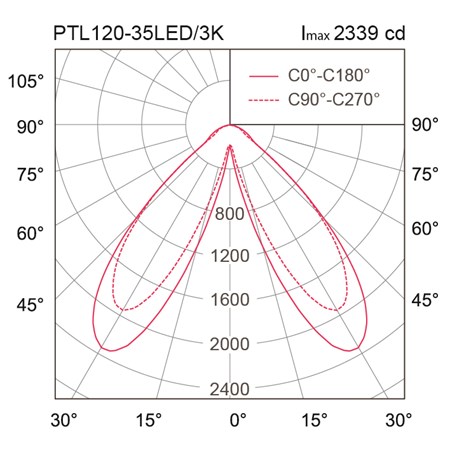

Photometric Data
