LED Recessed Linear
APPLICATION
โคมไฟฟลูออเรสเซนต์แบบฝัง RSTL600
LED Recessed Linear RSTL600 This luminaire is designed to use for office buildings, schools,storage areas, hospitals, and other working areas where is required highly uniformity illumination,etc.
SPECIFICATION
| IP Rating | 40 |
|---|---|
| Dimension | 595x595x55 mm. |
| Power | LED / 20W / 40W |
| Housing | Die-formed cold roll steel |
| Finishing | Powder coated in white |
| Reflector | Mirror anodized aluminium |
| Louver | Mirror anodized aluminium with Christmas tree profiled cross vanes |
| Diffuser | Opal Acrylic |
| Mounting | Recessed T-bar (for Concealed ceiling recommend to use additional frame) |
| Light Source | LED Strip Module |
| Colour Temperature | 4000/6500K |
| Luminaire Output | 20W:2000/2000 lm |
| 40W:4000/4000 lm | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC, 50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | 20W:T5 2x14W/T8 2x18W |
| 40W:T5 2x28W/T8 2x36W |

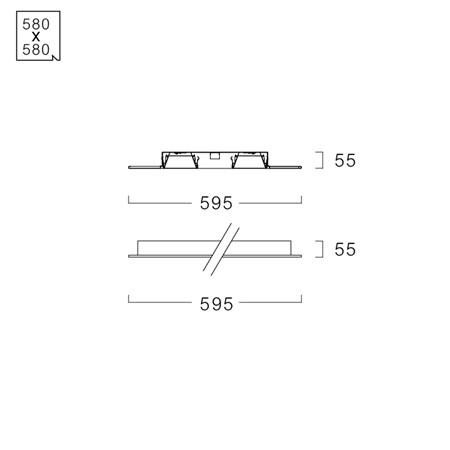

Dimension
