LED Inground
APPLICATION
โคมฝังพื้นพร้อมหลอด INL604
Inground INL604 luminaire is designed to accent or highlight trees,walls,columns,signboards,etc.
SPECIFICATION
| IP Rating | 67 |
|---|---|
| Dimension | Dia.170×146 mm. |
| Power | LED / 7W |
| Housing | Body made of die-cast aluminium Top cover made of die-cast aluminium |
| Finishing | Powder coated in black |
| Lens | Polycarbonate |
| Gasket | Silicone rubber |
| Cable Entry | Nickel brass cable gland |
| Cut Out | Dia.165 mm. |
| Mounting | Recessed in block out made of polypropylene |
| Light Source | LED Module |
| Colour Temperature | 3000/4000/5700K |
| Luminaire Output | 140 lm |

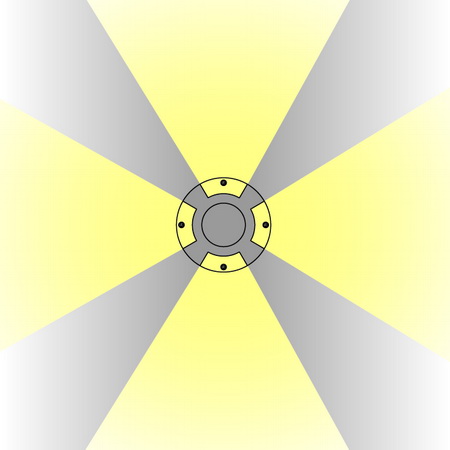

| Beam Angle | Four-direction output |
| Control Gear | Separate driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | III |
| Luminaire Lifetime | 25,000 hrs. |
| Equivalent | JC 50W |
Dimension
Photometric Data
