LED Inground
APPLICATION
โคมฝังพื้นพร้อมหลอด INL212
Inground INL212 luminaire is designed to accent or highlight trees,walls,columns,signboards,etc.
SPECIFICATION
| IP Rating | 67 |
|---|---|
| Dimension | Dia.216×310 mm. |
| Power | LED / 17W |
| Housing | Die-cast aluminium body with grade 316 stainless steel flange |
| Finishing | Matt finished |
| Lens | Clear toughened glass |
| Gasket | Silicone rubber |
| Cable Entry | Nickel brass cable gland |
| Cut Out | Dia.206 mm. |
| Mounting | Recessed in block out made of polypropylene |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/6000K |
| Luminaire Output | 1275 lm |
| Beam Angle | 18/36 degree |
| Control Gear | Separate driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | III |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | MH 35W |

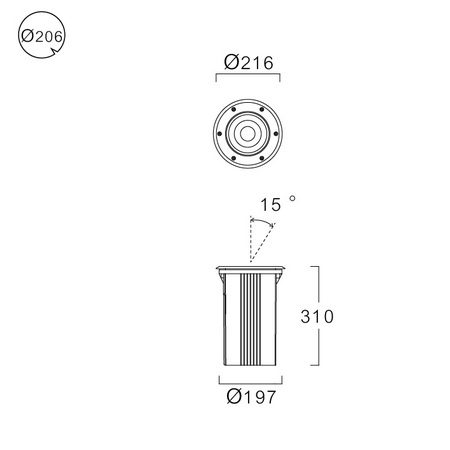

Dimension

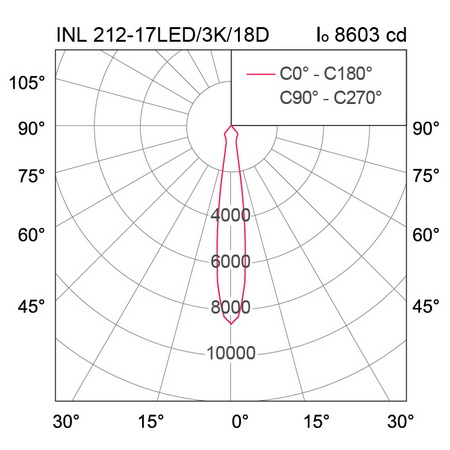

Photometric Data
