LED Inground
APPLICATION
โคมฝังพื้นพร้อมหลอด INL210
Inground INL210 luminaire is designed to accent or highlight trees,walls,columns,signboards,etc.
SPECIFICATION
| IP Rating | 67 |
|---|---|
| Dimension | Dia.115×150 mm. |
| Power | LED / 5W |
| Housing | Die-cast aluminium body with grade 316 stainless steel flange |
| Finishing | Matt finished |
| Lens | Clear toughened glass |
| Gasket | Silicone rubber |
| Cable Entry | Nickel brass cable gland |
| Cut Out | Dia.110 mm. |
| Mounting | Recessed in block out made of polypropylene |
| Light Source | LED-COB |
| Colour Temperature | 3000/4000/5000K |
| Luminaire Output | 225 lm |
| Beam Angle | 24/60 degree |
| Control Gear | Separate driver |
| Power Supply | 220-240VAC,50Hz |
| Insulation Class | III |
| Luminaire Lifetime | 25,000 hrs. |
| Equivalent | MR16 35W |

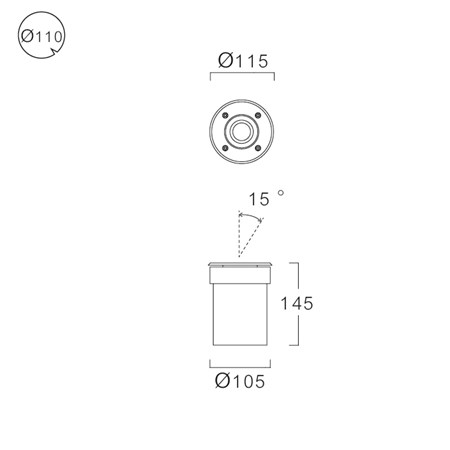

Dimension

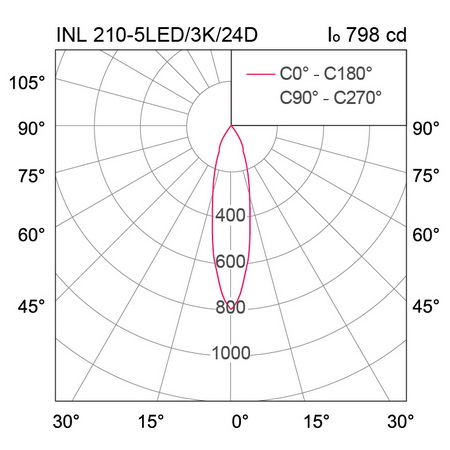

Photometric Data
