LED Streetlight
APPLICATION
โคมถนนพร้อมหลอด SLL436
Street Light SLL436 is designed to illuminate residences, streets,access roads,parking lots,highways, expressways,industrial areas,etc.
SPECIFICATION
| IP Rating | 66 |
|---|---|
| Dimension | 340x655x81 mm. |
| Power | LED / 175W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in grey |
| Lens | Acrylic (PMMA) |
| Gasket | Silicone rubber |
| Mounting | Side entry pole or bracket arm with OD 60×100 mm. spigot |
| Light Source | LED Module |
| Colour Temperature | 4000/5700K |
| Luminaire Output | 21875 lm |
| Beam Angle | Street lighting distribution : SL8 |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | HPS 400W |

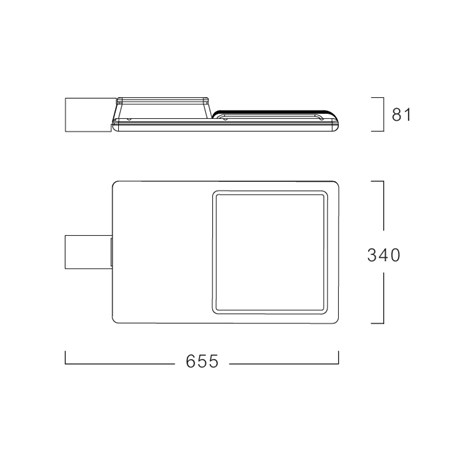

Dimension

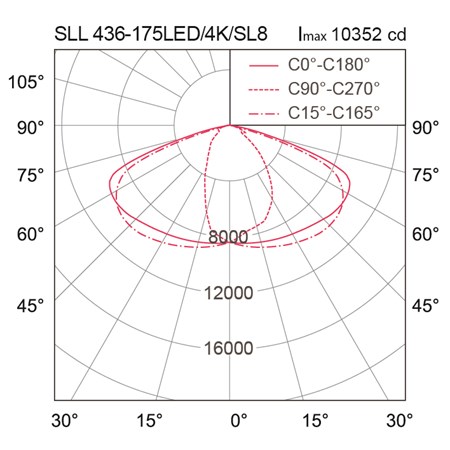

Photometric Data
