LED Streetlight
APPLICATION
โคมถนนพร้อมหลอด SLL220
Street Light SLL220 is designed to illuminate residences, streets,access roads,parking lots,highways, expressways,industrial areas,etc.
SPECIFICATION
| IP Rating | 66 |
|---|---|
| Dimension | 250x431x131 mm. |
| Power | LED / 55W / 70W / 105W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in grey |
| Lens | Acrylic (PMMA) |
| Gasket | Silicone rubber |
| Mounting | Side entry pole or bracket arm with OD 60×120 mm. spigot |
| Light Source | LED Module |
| Colour Temperature | 4000/5700K |
| Luminaire Output | 55W : 7700 lm |
| 70W : 9800 lm | |
| 105W : 13650 lm | |
| Beam Angle | Street lighting distribution : SL10 |
| Forward throw distribution : FW5 | |
| Control Gear | Built-in driver |
| Power Supply | 220-240VAC,50Hz |
| Power Factor | >0.95 |
| Insulation Class | l |
| Luminaire Lifetime | 50,000 hrs |
| Equivalent | 55W : MV 125W |
| 70W : HPS 150W | |
| 105W : HPS 250W |

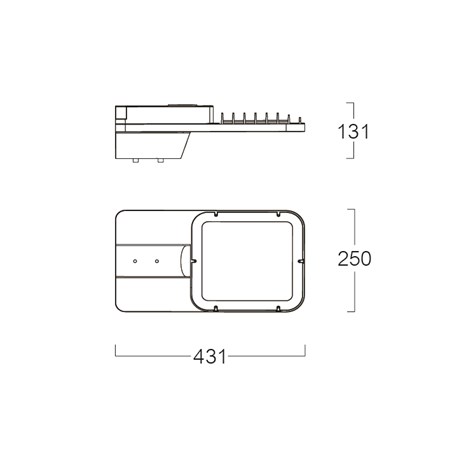

Dimension

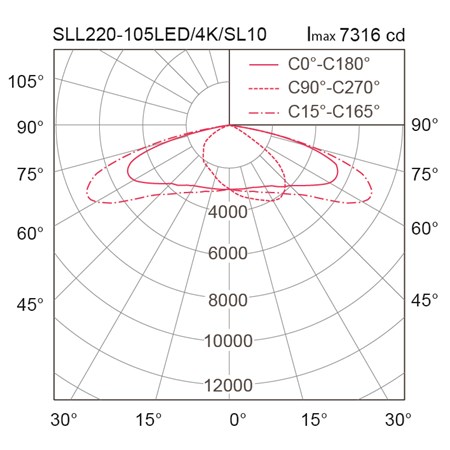

Photometric Data
